Specification

• Product Name: XOD Hydraulic Brake System

• Material: Aluminum Alloy

• Type: Hydraulic Brake

• Applicable Models: HALO KNIGHT T108 Scooters with XOD Brake System

• Weight: approx. 0.23 kg (Brake Pump), 0.19 kg (Brake Handle)

---

Package Included

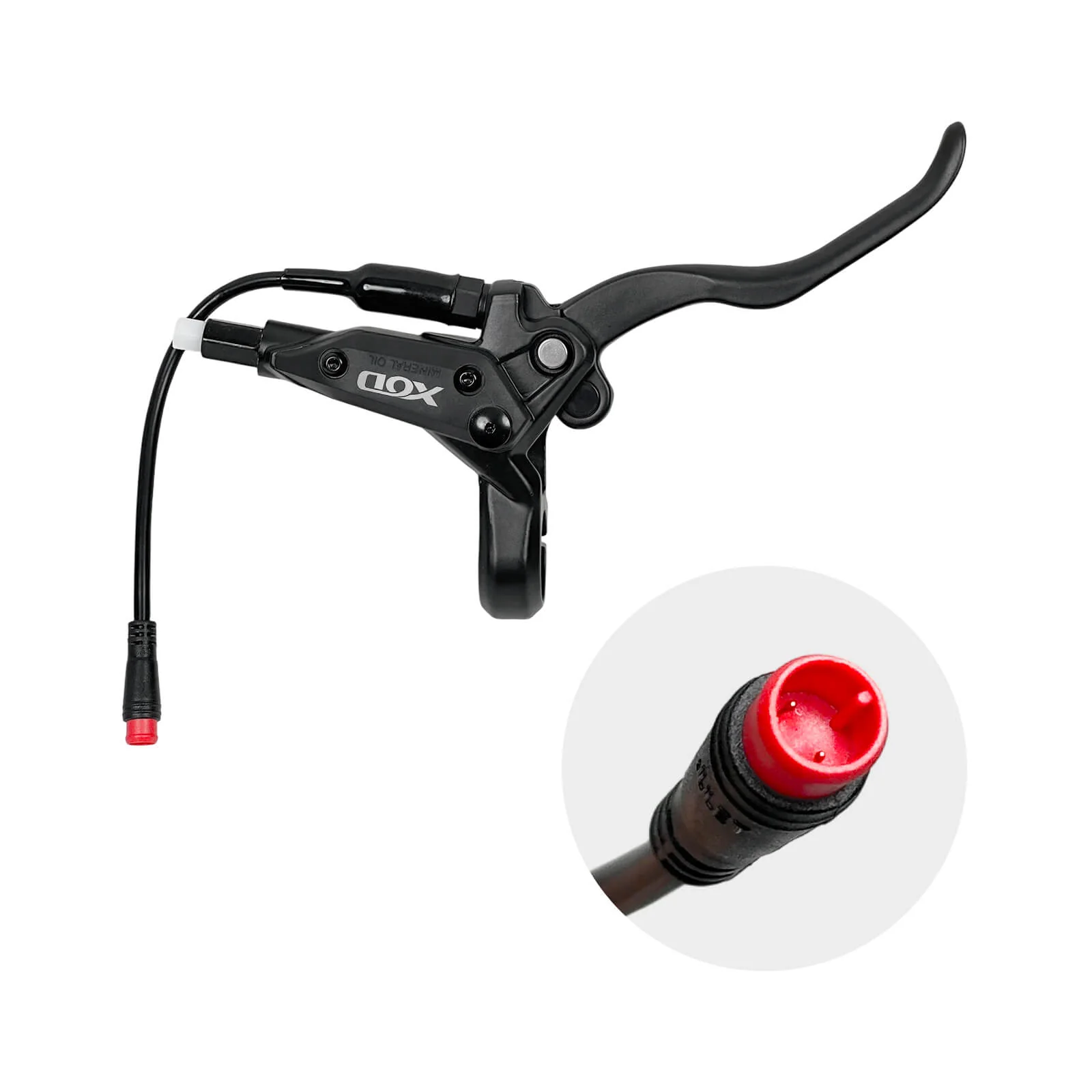

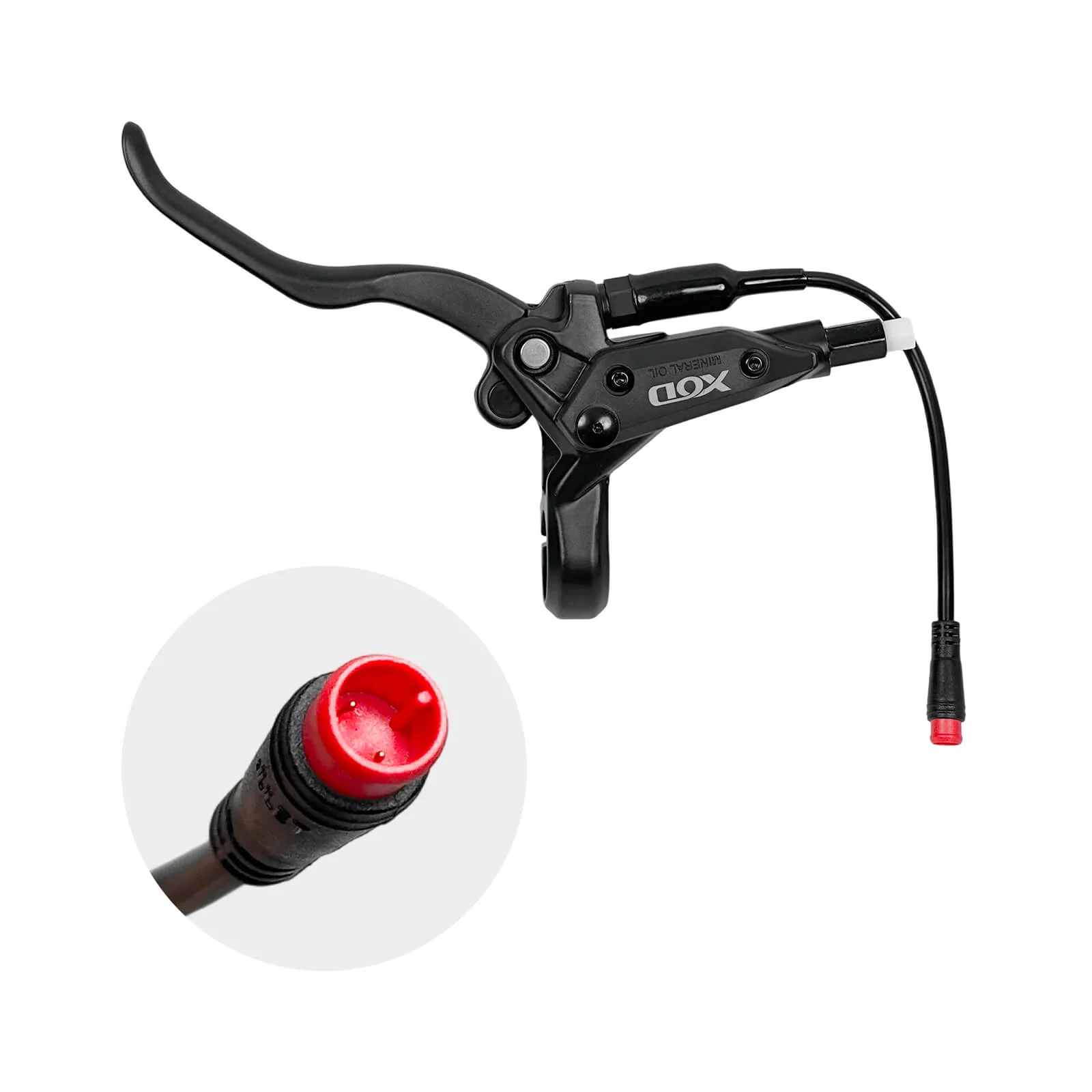

• 1 × Brake Handle/ Brake Pump + Oil Pipe (Option)

---

🔧 Compatibility (Must Read Before Ordering)

The T108 uses different XOD brake pump models on the front and rear wheels.
⚠️ Front and rear brake pumps are NOT interchangeable.
Please check the model code printed on your brake pump before placing your order. (See reference images in the listing.)

---

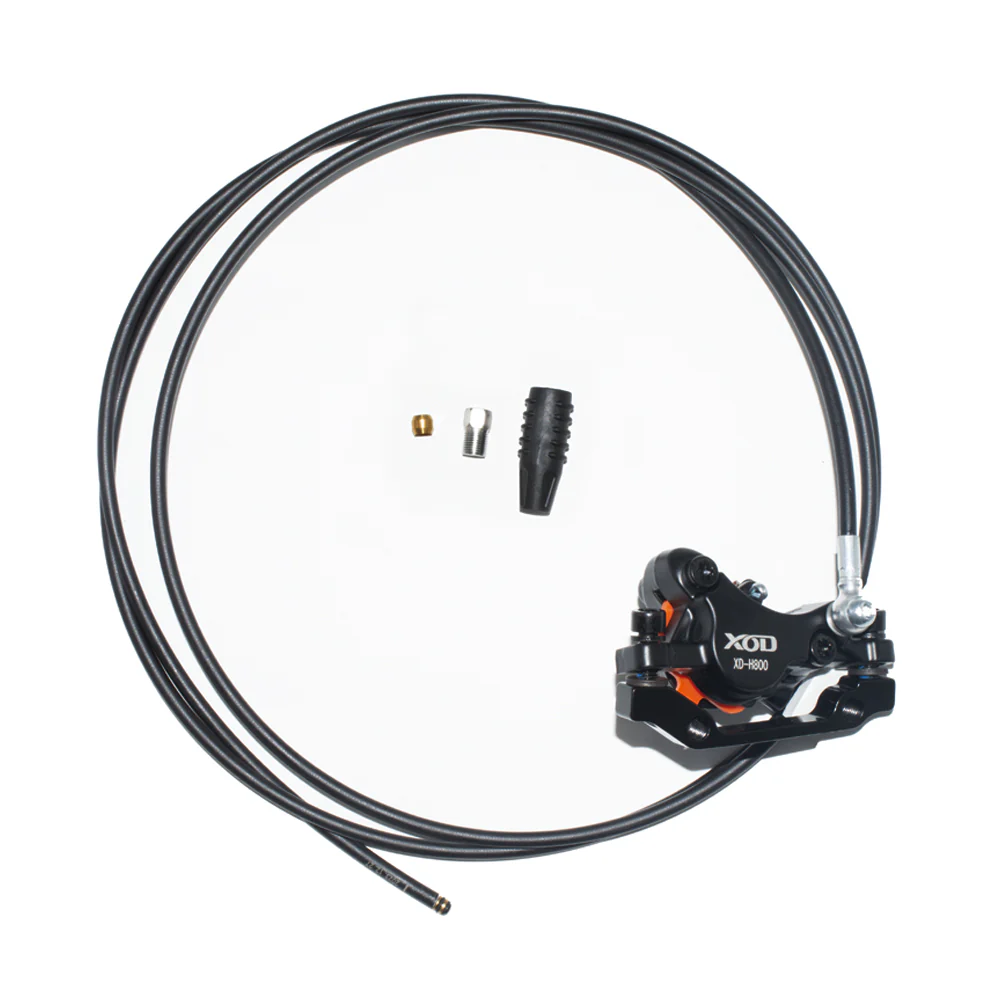

1. Brake Pump Versions — Black & Blue

● Black

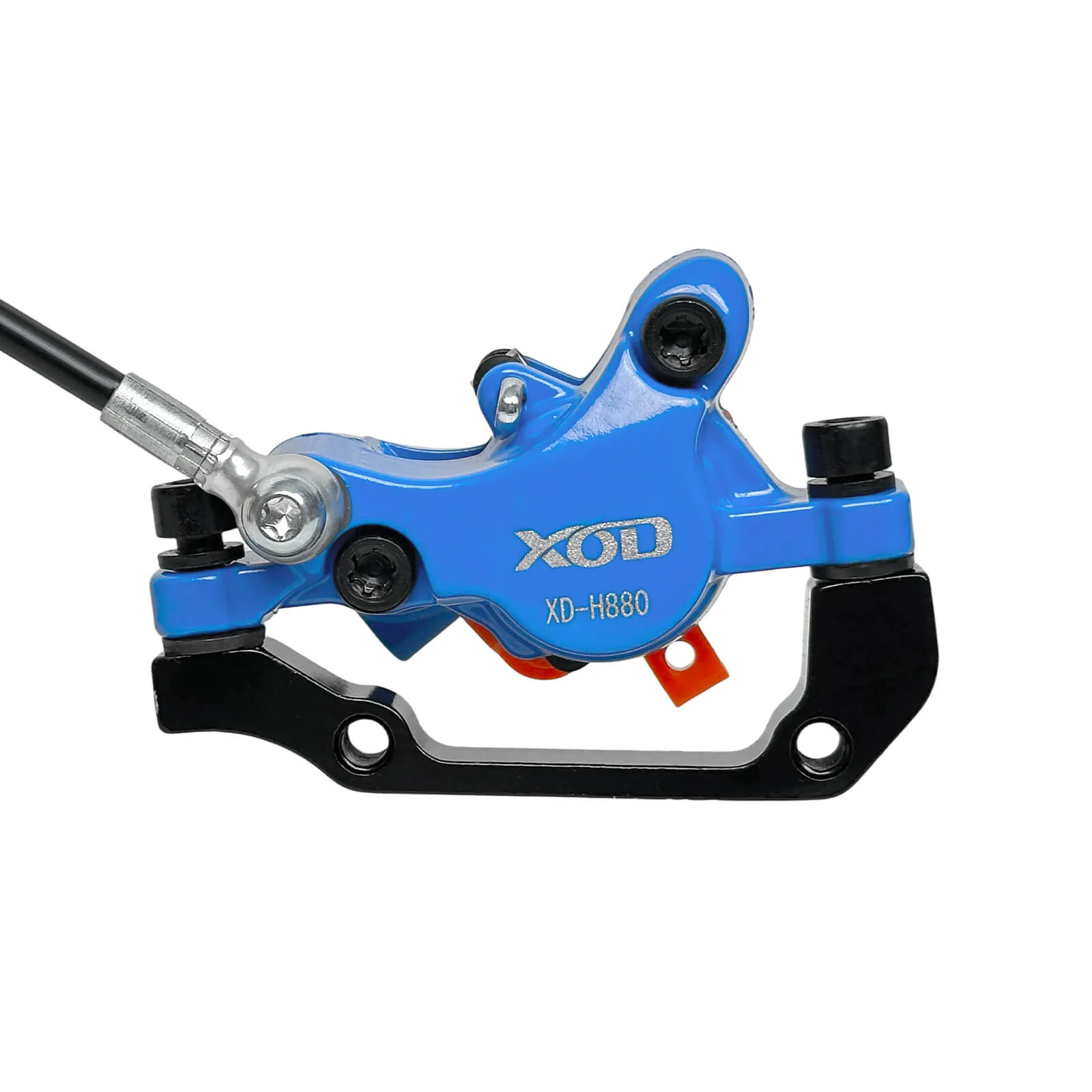

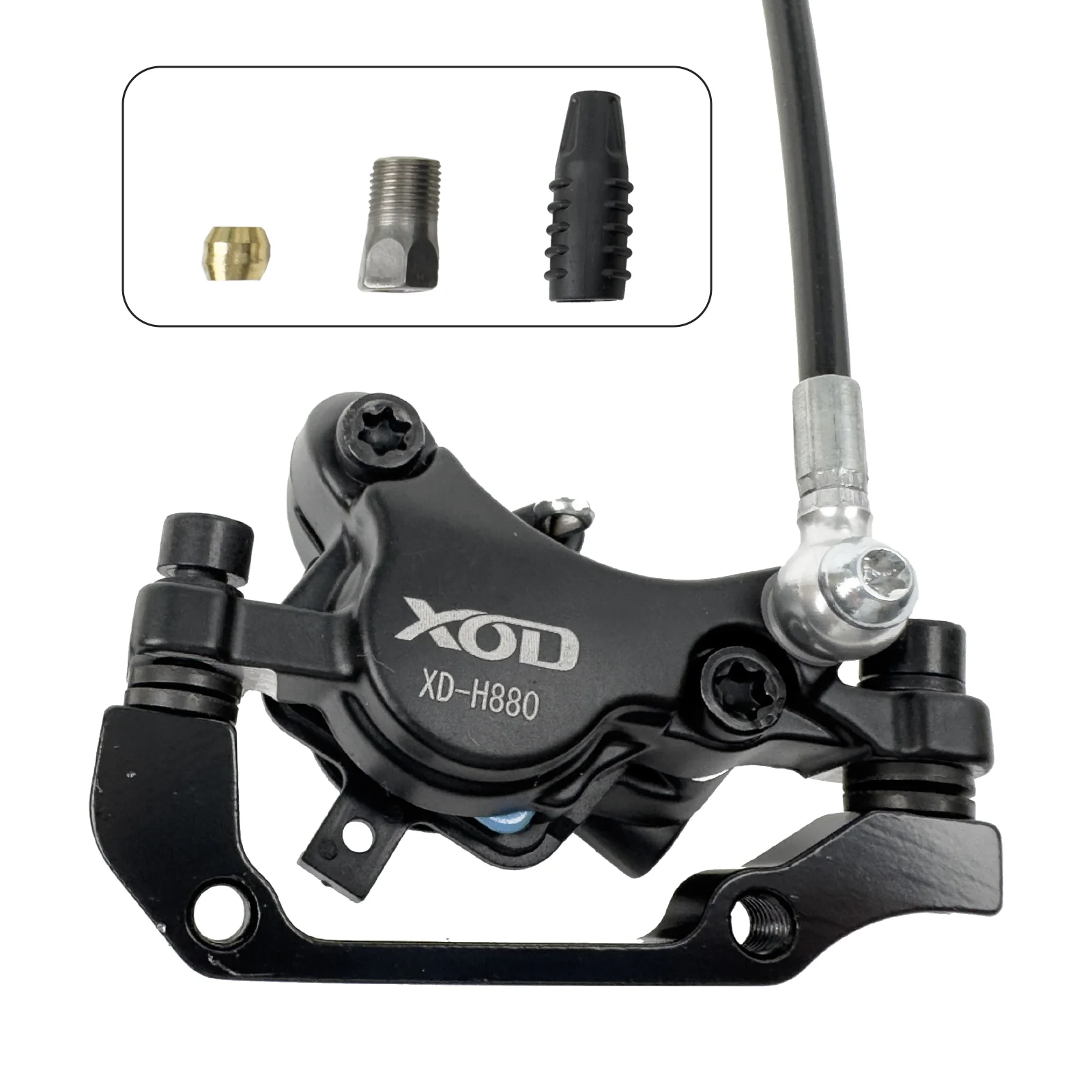

• Front Brake Pump: H880

• Rear Brake Pump: H800

● Blue

• Front Brake Pump: H880

• Rear Brake Pump: H800

👉 H880/ H800 cannot be mixed or substituted.

---

2. How to Confirm Your Brake Pump Model?

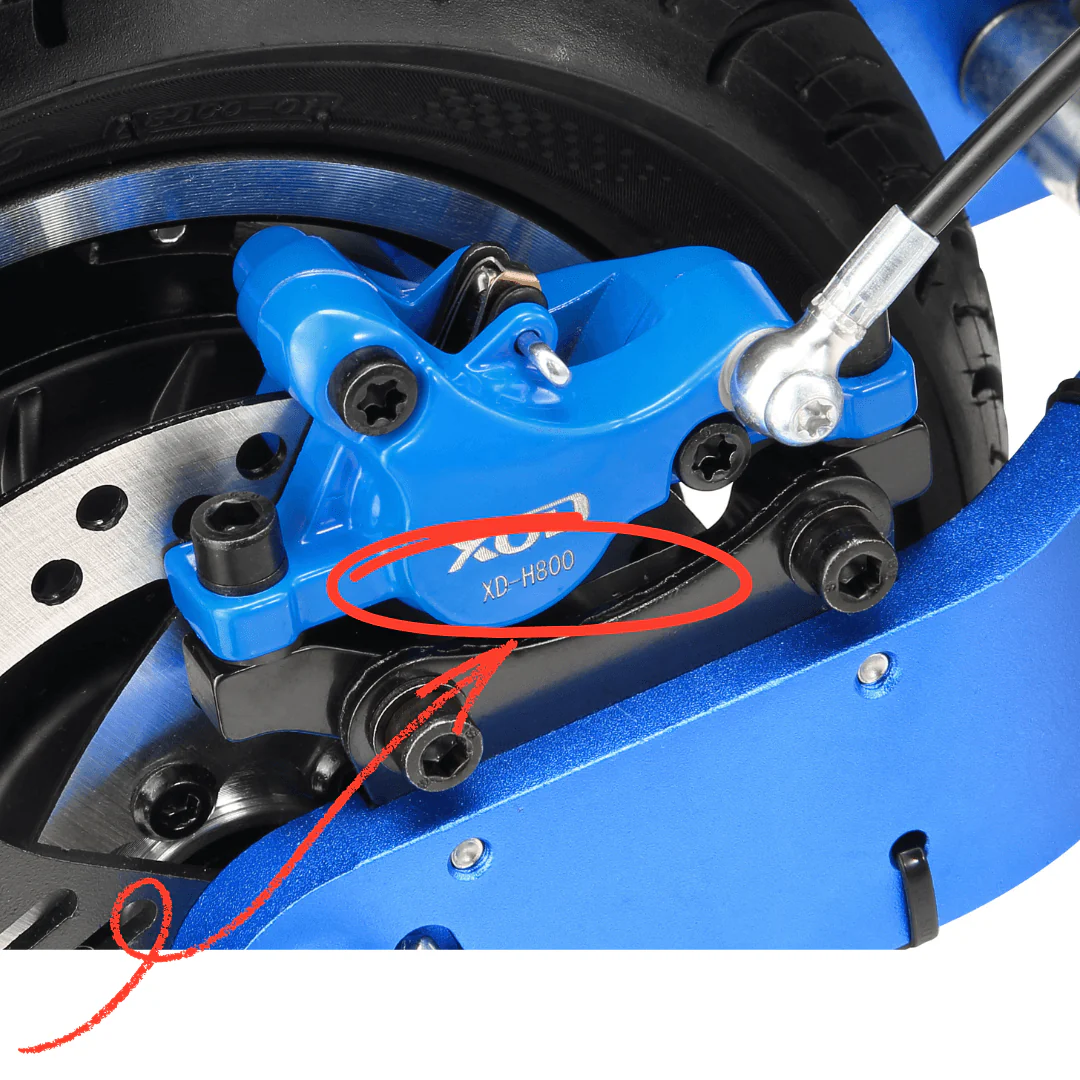

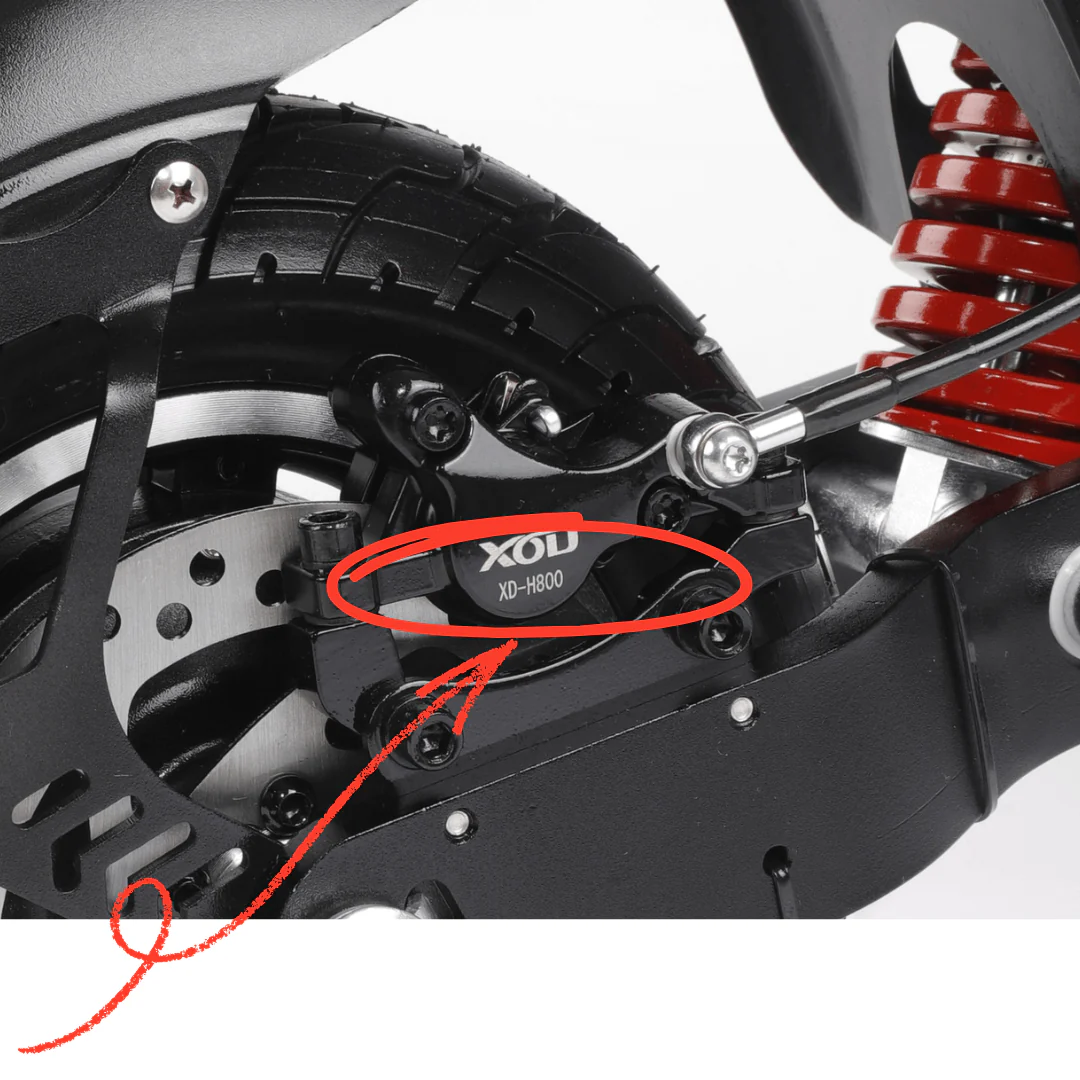

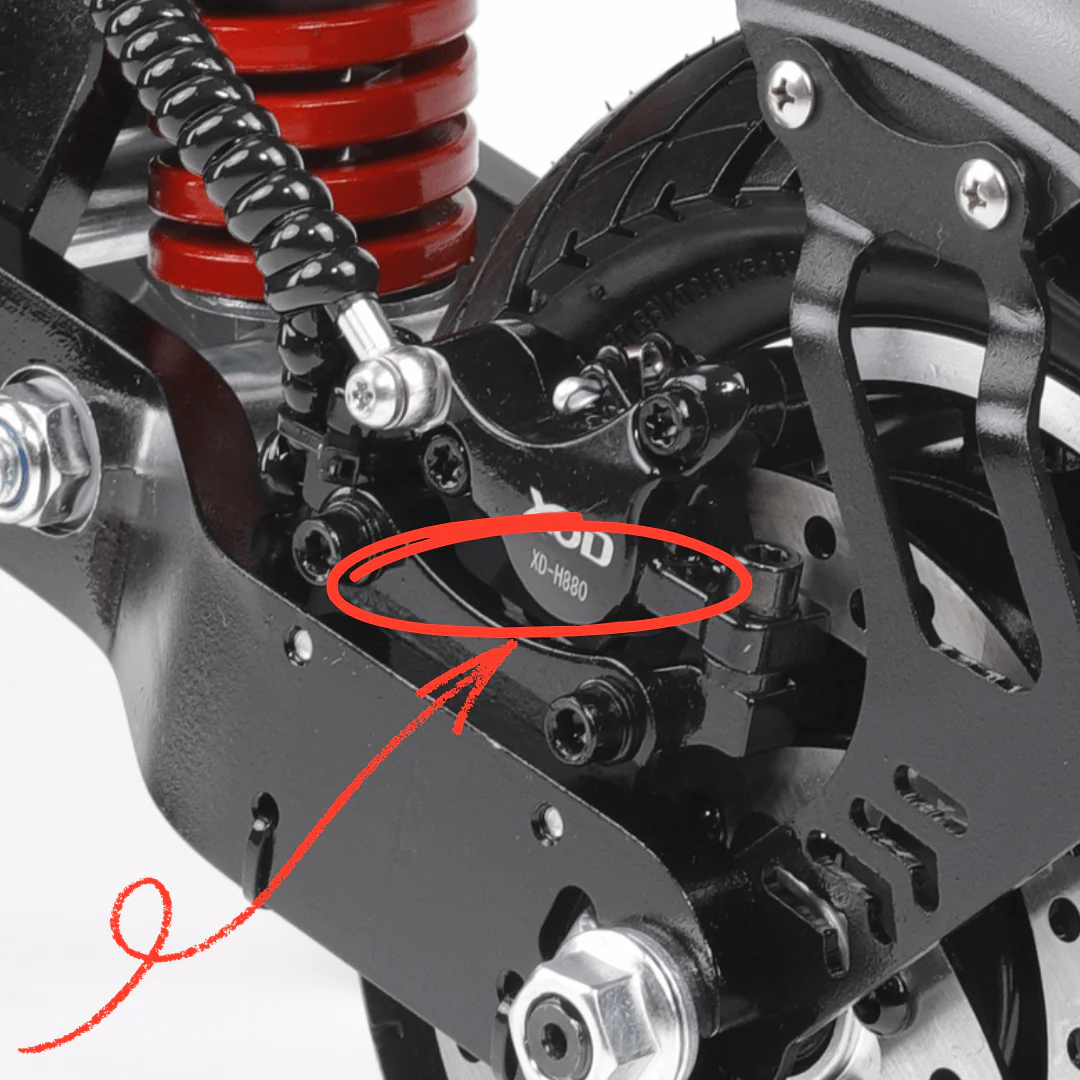

Each XOD brake pump has its model number printed directly on the pump body.

Due to product upgrades, the same scooter model may come with different brake pump versions (H880 / H800).
Always confirm the version on your scooter, not based on purchase year or batch.

To avoid ordering the wrong part:

1. Locate the brake pump on your scooter (front & rear).

2. Look for the printed model code:

   • H800 / H880 (Black)

   • H800 / H880 (Blue)

3. Purchase the exact same model shown on your pump.
   (Reference images will be provided in the product listing.)

---

3. Oil Pipe Lengths (T108)

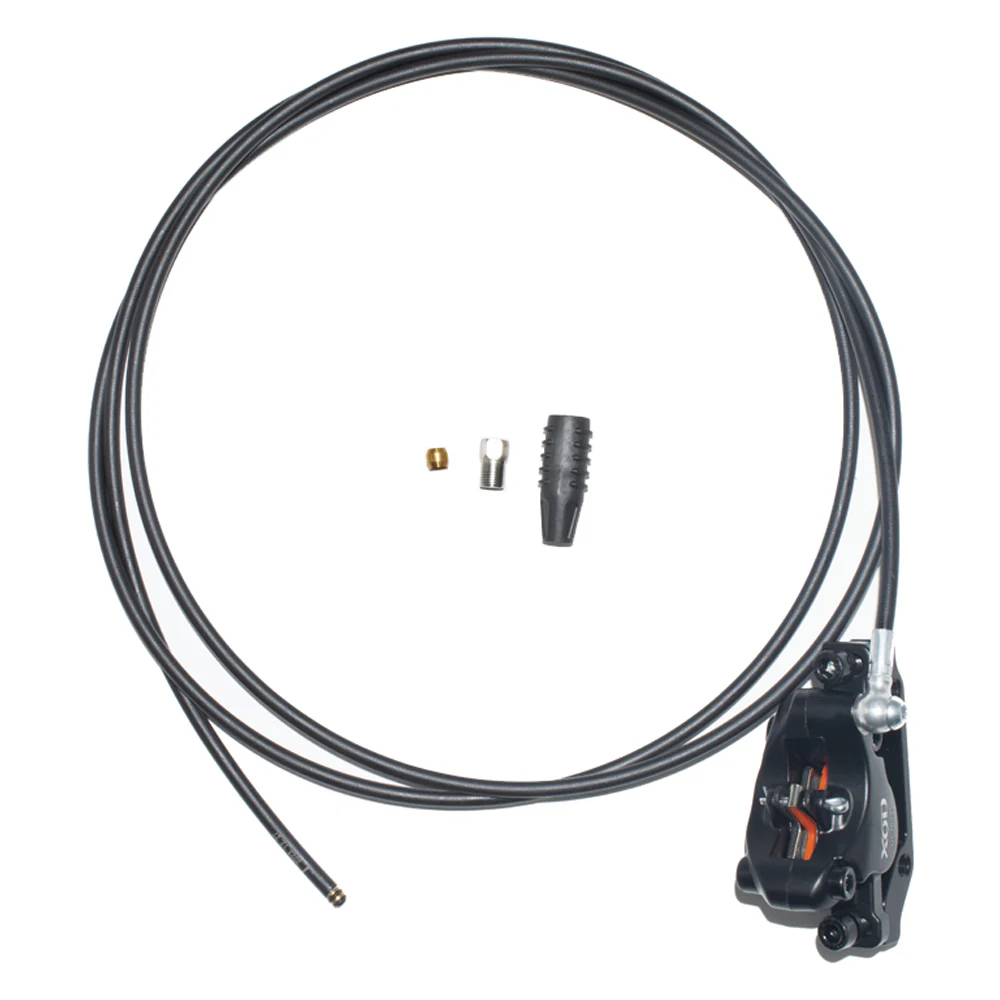

• The length of the oil pipe depends on the brake position:

  • Rear (Left) Brake Oil Pipe: approx. 206 cm

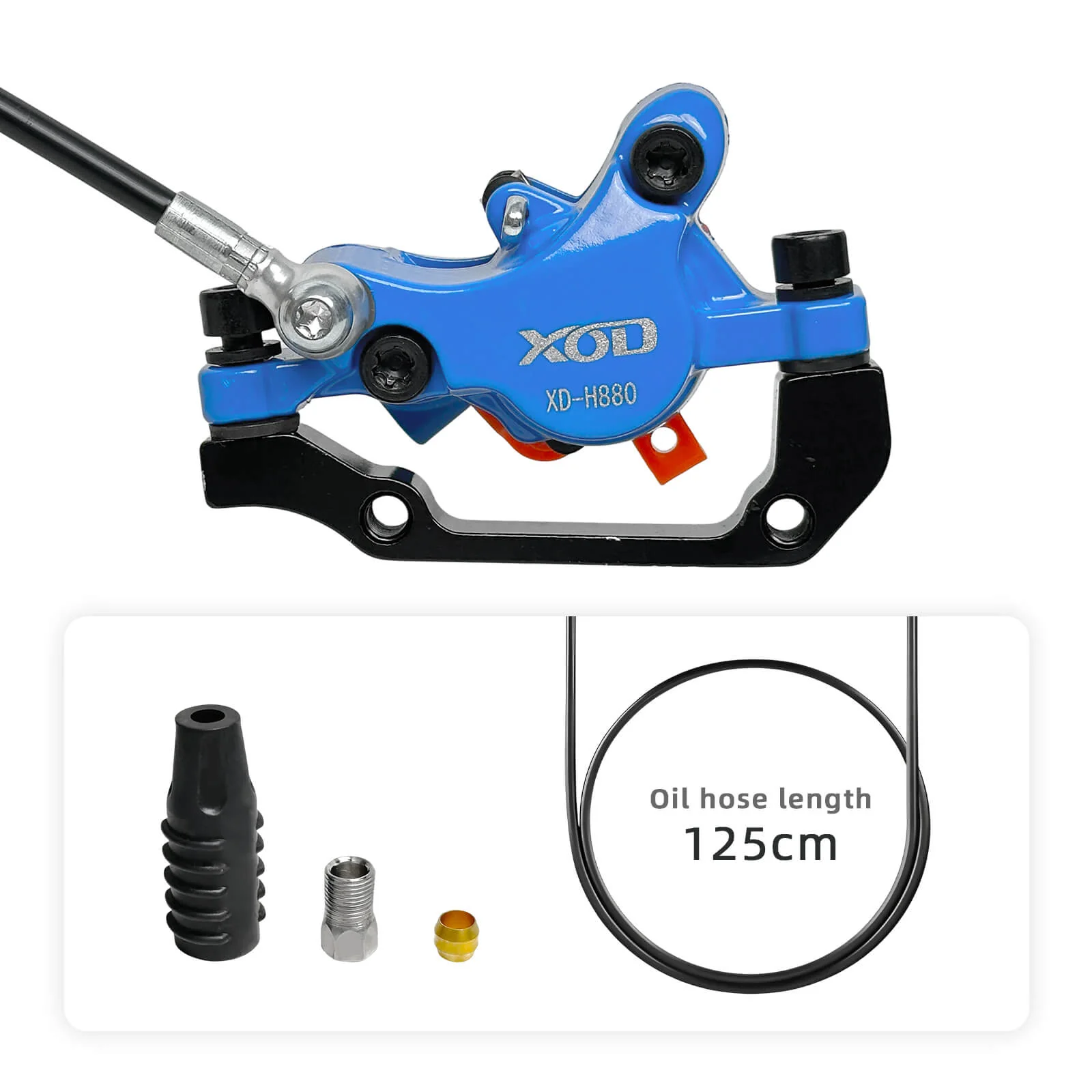

  • Front (Right) Brake Oil Pipe: approx. 125 cm

  Please select the correct side when ordering.

---

📌 Notice

Before purchasing, we strongly recommend contacting our support team:
📧 [email protected]

Please send:

1. A photo of your scooter

2. Clear close-up photos of both front and rear brake pumps, showing the printed model numbers

We will verify compatibility for you to prevent incorrect orders.
